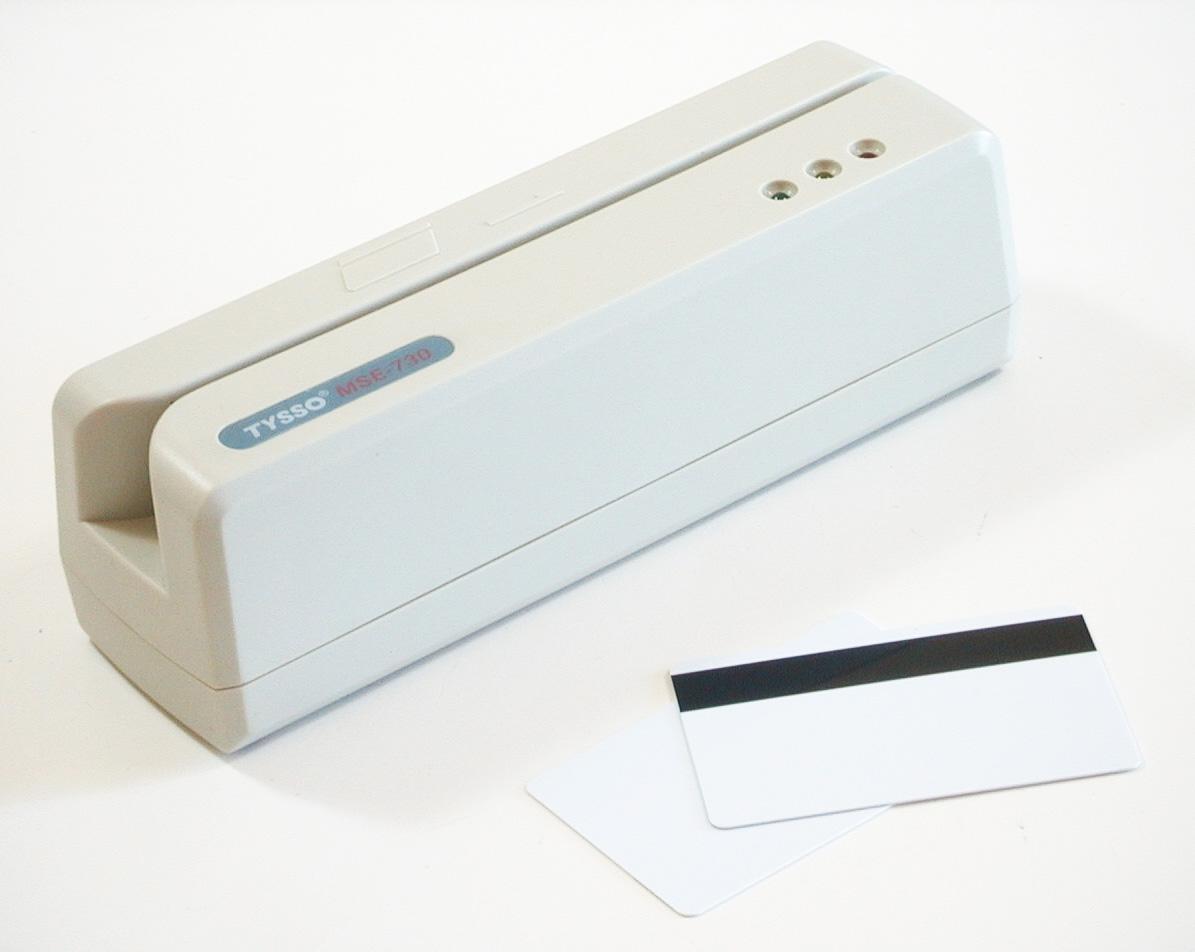

MSE-730 TYSSO 3-Track Magnetic Stripe Credit Card Encoder/Writer, Serial RS-232 Interface

MSE-730 is a durable industrial grade Lo-Co magnetic card reader & writer with a MTBF of 95,000 hours and the durability of half million swipes on the magnetic head. It reads and writes up to three tracks of information with a single swipe. After every swipe, the data is sent to the computer via the standard RS232 serial interface. This Lo-co configurable encoder is specially designed for value added resellers (VARs) and system integrators (SIs). It supports a rich set of commands to inter-operate with Windows based software programs.

FEATURES

* MSR206/MSE-630A dual platform compatibility
* 300 Oersted
* Tracks 1&2&3
* ISO 7811-1/2/3/4/5 & ANSI 4.16 1983 compliant
* 5/6/7BPC 210/75BPI on any track
* RS-232 connectivity
* Manual swipe operation
* Dual status indicators - LEDs and beeper
* Durable ABS plastic housing for heavy duty usage
* Power-on self test
* The software is Windows 2000, XP and Vista compatible

ELECTRICAL

* Operating Voltage: +5V DC (±5%)
* Current Consumption: 85 mA (read) and 280 mA (write)

DURABILITY

* Approx. 500,000 passes

PHYSICAL

* Dimensions (mm): 212 x 63x 63
* Weight: 0.58 kg (1.28 lbs)

ENVIRONMENTAL

* Operating Temperature: 0 to 40 °C
* Storage Temperature: -20 to 70 °C
* Relative Humidity: 20% to 90% (non-condensing)

RECORDING DENSITY

* Track 1: 210 BPI
* Track 2: 75 BPI
* Track 3: 210 BPI
