Product Description

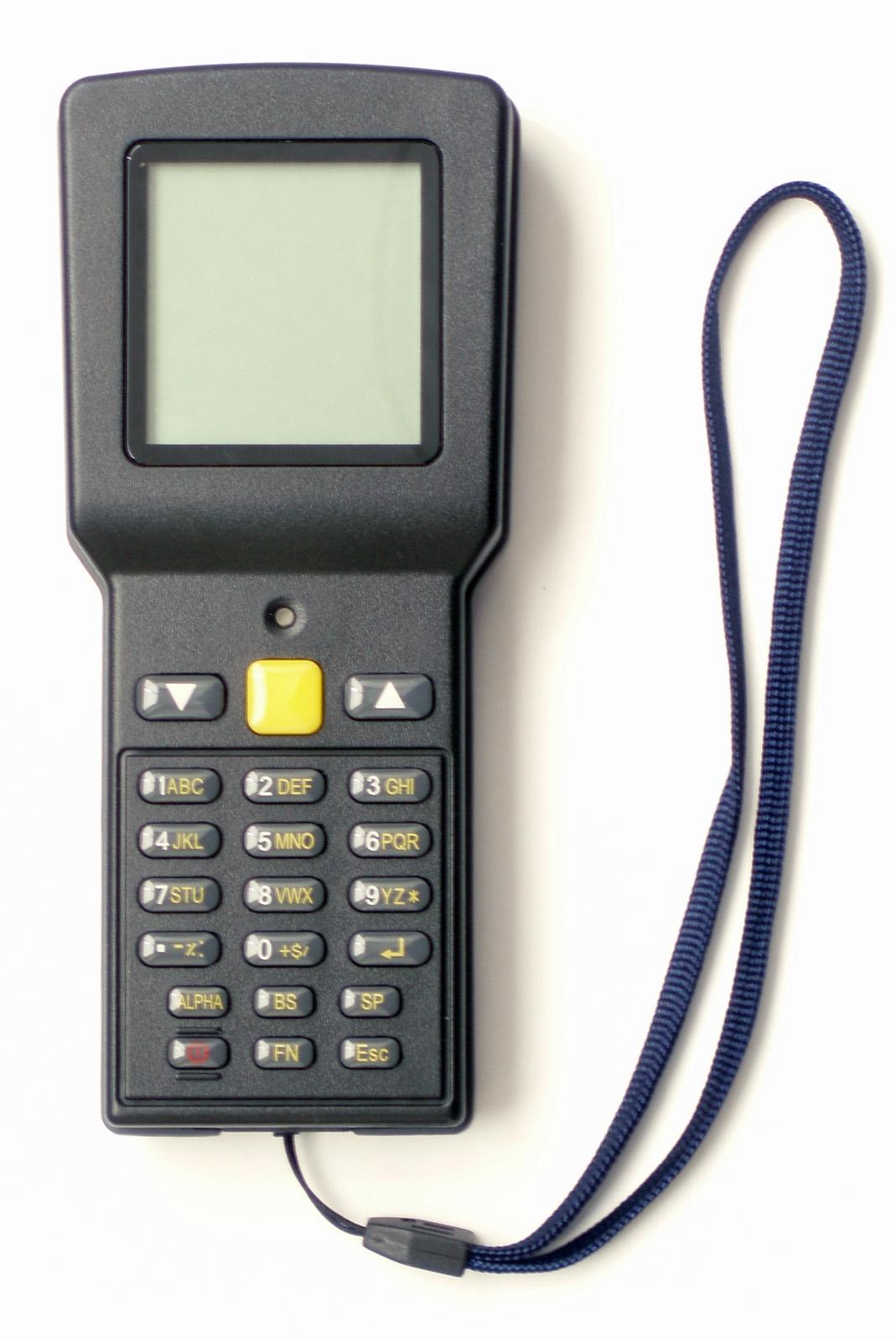

This brand new BCP-7000 from Fametech is a powerful data collector that allows its operator to collect data without distance limitations. This high-profile product has a built-in Lithium-ion battery and an additional backup battery for SRAM, allowing for stand-alone operation and storage of thousands of data records. Bundled with an embedded job-generator software, the portable data terminal provides users the ability to create customized database that suits their business needs. In addition, it is equipped with high quality laser scanner and large internal memory, making it the ideal device for inventory management and stock-taking.
BATTERY
Operation battery: Lithium-ion Rechargeable Battery Pack 1700mAh Li-Ion 3.7V
Backup battery: 3.0V, 18mAh, Maxell ML rechargeable Lithium battery for SRAM
Working time: Over 30 hours and more than 20,000 scans
PHYSICAL
Dimensions: 150mm (L) x 65mm (W) x 30mm (H)
Weight: 175g (including batteries)
Material: ABS
SYSTEM
CPU: ST uPSD 8bit CPU
Memory: 1 M Bytes SRAM, 256K Bytes Flash memory (store program software, codes, fonts, constant data)
Display: 128x128 graphic dots FSTN LCD display with blue LED back-light
Keypad: 21 rubber keys, including alphanumeric keys, arrow keys, function keys, and scan trigger key.
Buzzer: Software programmable audio indicator, 1KHz to 4KHz, low power transducer type.
LED: Dual-color (green and red) LED for status indication.
Interface: USB
Programming Language: Windows-based Application Generator
EMBEDDED SCANNER
Light source: visible Laser diode operating at 660~640 nm
Scan speed: 120~80 scans per second
Minimum print contrast: 20% absolute dark/light reflectance at 670nm
Depth of field: 5 ~ 65 cm, depends on barcode resolution
ENVIRONMENT
Humidity (operating): non-condensed 10% to 85%
Humidity (storage): non-condensed 5% to 85%
Temperature (operating): 0 to 45 °C
Temperature (storage): -10 to 45 °C
Shock resistance: 1.2m drop onto concrete
BATTERY
Operation battery: Lithium-ion Rechargeable Battery Pack 1700mAh Li-Ion 3.7V
Backup battery: 3.0V, 18mAh, Maxell ML rechargeable Lithium battery for SRAM
Working time: Over 30 hours and more than 20,000 scans
PHYSICAL
Dimensions: 150mm (L) x 65mm (W) x 30mm (H)
Weight: 175g (including batteries)
Material: ABS
SYSTEM
CPU: ST uPSD 8bit CPU
Memory: 1 M Bytes SRAM, 256K Bytes Flash memory (store program software, codes, fonts, constant data)
Display: 128x128 graphic dots FSTN LCD display with blue LED back-light
Keypad: 21 rubber keys, including alphanumeric keys, arrow keys, function keys, and scan trigger key.
Buzzer: Software programmable audio indicator, 1KHz to 4KHz, low power transducer type.
LED: Dual-color (green and red) LED for status indication.
Interface: USB
Programming Language: Windows-based Application Generator
EMBEDDED SCANNER
Light source: visible Laser diode operating at 660~640 nm
Scan speed: 120~80 scans per second
Minimum print contrast: 20% absolute dark/light reflectance at 670nm
Depth of field: 5 ~ 65 cm, depends on barcode resolution
ENVIRONMENT
Humidity (operating): non-condensed 10% to 85%
Humidity (storage): non-condensed 5% to 85%
Temperature (operating): 0 to 45 °C
Temperature (storage): -10 to 45 °C
Shock resistance: 1.2m drop onto concrete
Additional Information
| SKU | BCP7000-U01 |
| Manufacturer | Fametech |
| Country of Origin | Taiwan |
| Warranty | 1 Year |
| Tax Class | 8.25% Tax in CA |
